| Generator | : | Guascor SFGM560 |
| Capacity | : | 1055 kW, 1248 kVA |
| Ampere | : | 110 A (full Loads) |
| Voltage | : | 6.660 Volt |
| RPM | : | 1500 RPM |
| Frequency | : | 50 Hz. |
| Supporting File | : | 11-625-E-1000-FRENTE_dimension total.pdf |
| 11-625-E-1001-UNIFILAR_online diagram.pdf | ||
| 11-625-E-1002-FUNCIONAL_Functional Diagram.pdf | ||
| ELK_VEC515-6-7 Multico_Fase 1_11223_120911_electrical diagram.pdf |
 |

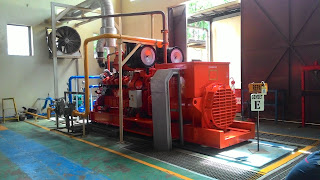

| Guascor 3 |
 |
| Nameplate Guascor 3 |
 |
| model nameplate guascor 3 |
 |
| nameplate guascor 3 |
 |
| Ignition system Guascor 2 |
 |
| Gas inlet Instrumentasi (valve train) |
 |
| Tampak Samping |
 |
| Parameter Gauge |
 |
| Tampak samping |
 |
| Cooling system |
 |
| cooling system line |
